MRM Concrete Batching Plants

Model | MRM 135S

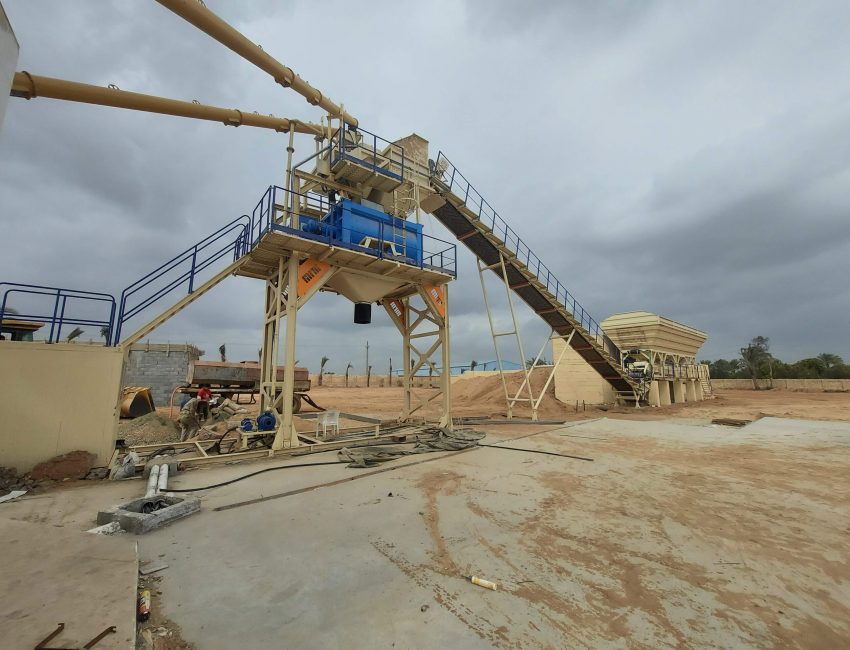

Stationary Concrete Batching Plant

135 m³ Concrete Production Capacity

  • Provides high performance with medium capacity
  • Easy assembly and disassembly within 7 days.
  • A robust and durable steel construction
  • Suitable for difficult working conditions.

General Specifications:

  • Production capacity 125 m3/h - 135 m3/h
  • Transportation by 2 trucks
  • Installation Area 3,800 mm x 31,000 mm
  • Total engine power 180 Kw

Options

  • Steel wall for the ramp.
  • Additional steel legs for cement silos.

MRM 135S

Technical Specifications

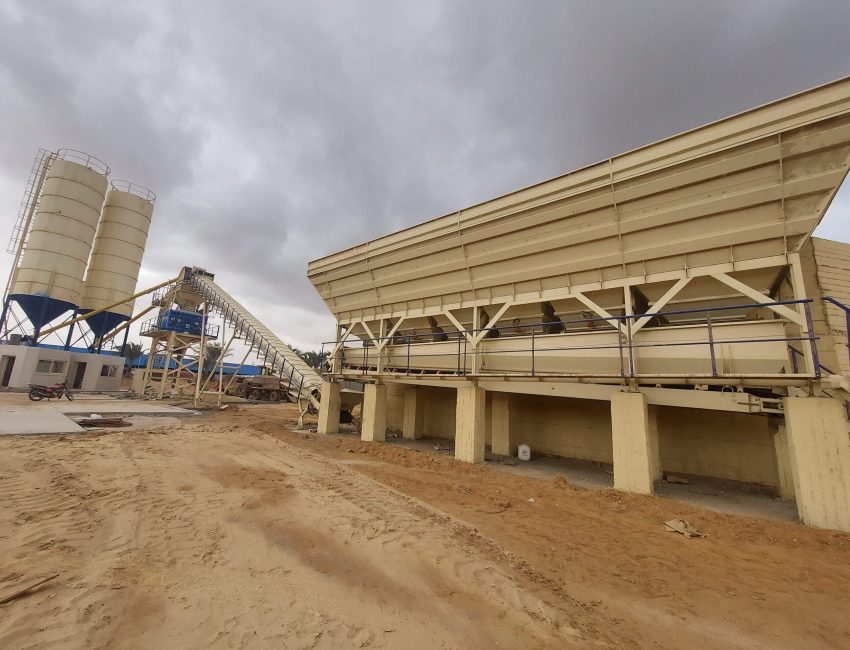

Aggregate Bunker (In-line Bunker) Specifations
Eye Quantity and Capacity
4 x 30 m3, net 120 m3 capacity
Drain Covers
2 in each compartment, total 8 discharge lids
Pneumatic Piston
FESTO brand (Germany) or PEMAKS brand (Turkey) / 8 pieces
Pneumatic Air Control Valve
FESTO brand (Germany) or PEMAKS brand (Turkey) / 8 pieces
Vibrator
KEM-P 300/3 brand (Turkey) or PEMAKS brand (Turkey) / 4 pieces
Conditioner
FESTO brand (Germany) or PEMAKS brand (Turkey) / 1 Piece
Sheet Wall Thickness
4 mm - 5 mm - 6 mm
Bunker Top Grates
INCLUDED
Aggregate Weighing Belt and Tank Specifations
Tape Brand / Quality / Dimensions
YÖRÜK Marka (Turkey) / EP 125 4 Floors / 10 x 1000 x 28000 mm
Weighing Hopper Capacity
0 - 6600 kg
Load-cell
PULS brand (Turkey) / 4 pieces x 5000 kg
Vibrator
KEM-P 300/3 brand (Turkey) / 2 Pieces
Engine
GAMAK brand (Turkey) or AEMOT brand (Turkey) / 1 piece 18.5 kW
Reducer
DİŞSAN DG 225 brand (Turkey) / 1 Piece
Drums
Drive drum 10 mm thick rubber coated
Roller Bearings
SKF (Sweden)
Tape Safety Switch
2 pieces
Double National
Taped
160 m³/s
Optimum Efficiency

Ability to produce up to 160 m3 of concrete per hour with 4.0 m3 twinshaft mixer.

Economic Transportation

Can be transported with only 3 40' HC containers or tilt trucks.

Easy and Fast Installation

8-10 days of field assembly.

Maximum Throughput

Designed for easy and fast installation, economical shipment and high capacity operation. We have never designed anything just to make it look good - that would be a misjudgment of the opportunity we had. Instead, we rethought the concept of the "Optimum Power Plant", designing a more efficient and more economical power plant, while not forgetting the requirements of our customers.
